Natural Gas Engine Conversion Kit for Vehicles

FOB Reference Price:Get Latest Price
US $250-260 / Units | 10 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Naierte
Warranty:
1 Years
Certification:
TS16949: 2009
OE NO.:
N/A
Car Model:
Truck, city bus, combine harvester
Size:
Normal Standard
Fuel Type:
CNG LPG Vapor or Natural Gas
Inlet Pressure:
0.3-0.5kPa
Diaphragm Material:
Silicone
Color:
silver white
Material:
Aluminum
Type:
Carburetor
Car Make:
car buses trucks
Model Number:
HHQD-200
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard caton
Port
Shanghai
Lead Time :
30 days after receiving deposit or L/C

DESCRIPTION



1.  The Fuel Mixing Devices (LPG engine Mixer) HHQD-200 is a Dual chamber air-valve mixer.

2.  It is a Dual chamber air-gas valve carburetor/mixer.

3.  It offers a 90 degree air inlet to provide low overhead clearance

4.  It is available with several Air Horn and throttle body options

5.  All our mixers can reduce air flow by 20%

6.  Fuel Mixing Devices (LPG engine Mixer) HHQD-200 is designed for use on LPG engines up to 9L(5 to 9L).

7. This product  had achieved NEW PRACTICAL PATENT APPEARANCE

SPECIFICATIONS


1. Fuel Type .................................... ......LPG or Natural Gas
2. Inlet Pressure .................................... 0.3--0.5kPa
3. Operating Temperature Range ......... -40°F to +250°F (-40°C to +121°C)
4. Mounting Position .............................. Vertical

5. Diaphragm Material ........................... Silicone
6. HP/kW Rating .................................... 201--402hp (150--300Kw)





NEW PRACTICAL PATENT APPEARANCE

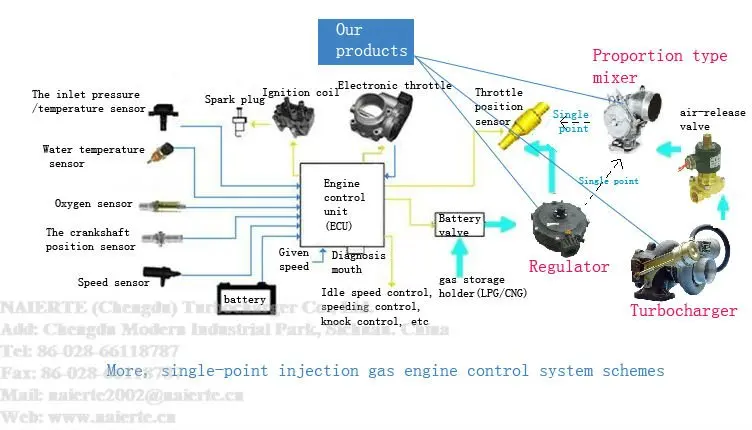

ELECTRONIC FUEL INJECTION

.jpg

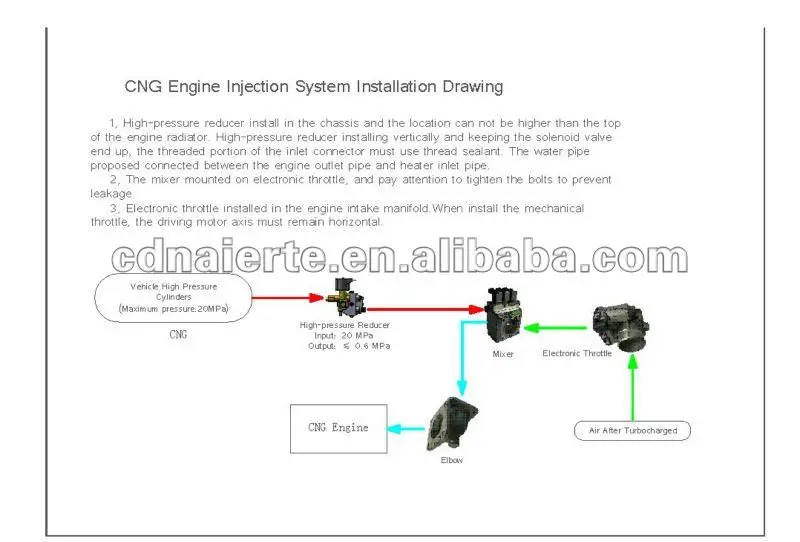

Working principle diagram.jpg
