HHQD-200 series air-gas valve carburetor conversion kits

FOB Reference Price:Get Latest Price
US $265-270 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Naierte
Warranty:
1 Years
Certification:
ECE-R110, ISO/TS16949
OE NO.:
Null
Car Model:
Truck Bus
Size:
Normal Standard
Fuel Type:
CNG LPG Vapor or Natural Gas
Inlet Pressure:
0.3-0.5kPa
Diaphragm Material:
Silicone
Material:
aluminium alloy
Market:
America,Africa,Europe,etc
Application:
Engine Parts
Model Number:
HHQD-200
Packing:
Carton
MOQ:
1 PC
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
standard caton
Port
Shanghai
Lead Time :
30 days after receiving deposit or L/C

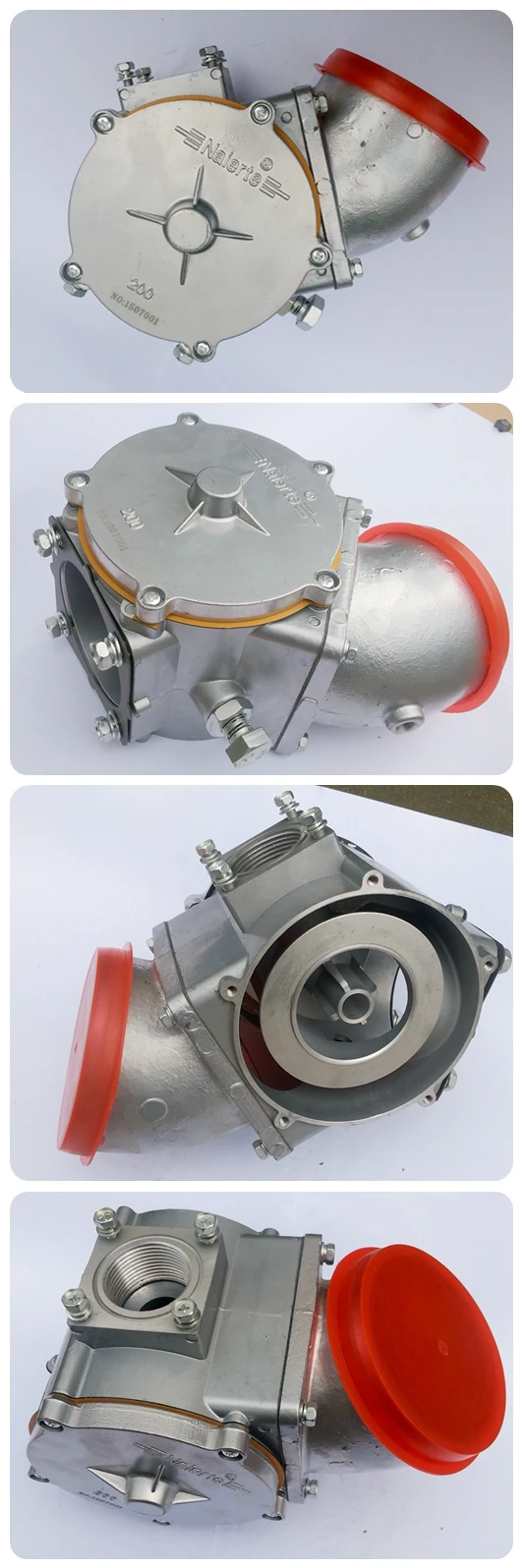

                                  HHQD-200 series air-gas valve carburetor conversion kits



Introduce:



1.  Our product allows transportation and industrial engines to operate on clean burning, gaseous fuels such as Compressed Natural Gas (CNG)

2.  It could improve the fuel efficiency of the engine to obtain a more complete utilization of the power transmitting properties of the fuel

3.it is believed that emissions from an engine utilizing the device will pass pollution control specifications.



Product Description



1.  The HHQD-200 is a doule diaphragm air-valve carburetor/mixer.

2. The Fuel Mixing Devices (CNG engine Mixer) HHQD-200 is a double diaphragm air-valve mixer. It offers a 90° air inlet (5080mm) to provide low overhead clearance.

3.  It is available with several air horn and throttle valve options

4.  The HHQD-200 is also available for feedback applications with the 'FB' designation

5.  The HHQD-200 mixer provides a convenient 1/8” balance port at the air inlet

6.  Additional low speed idle mixture control can be obtained to lean air/fuel mixtures through the use of optional shims.

7.  Fuel Mixing Devices (LPG engine Mixer) HHQD-200 is designed for use on LPG engines up to 9L(5 to 9L).
8.  All our mixers can reduce air flow by 20%

9. Can completely replace the IMPCO mixer.



SPECIFICATIONS

Fuel TypeLPG Vapor or Natural Gas
Inlet Pressure-0.37 --100kPa
Operating Temperature Range-40°F to +250°F (-40°C to +121°C)
Mounting PositionVertical
Diaphragm MaterialSilicone
HP/kW Rating100-230KW



Working principle diagram.jpg

.jpg
