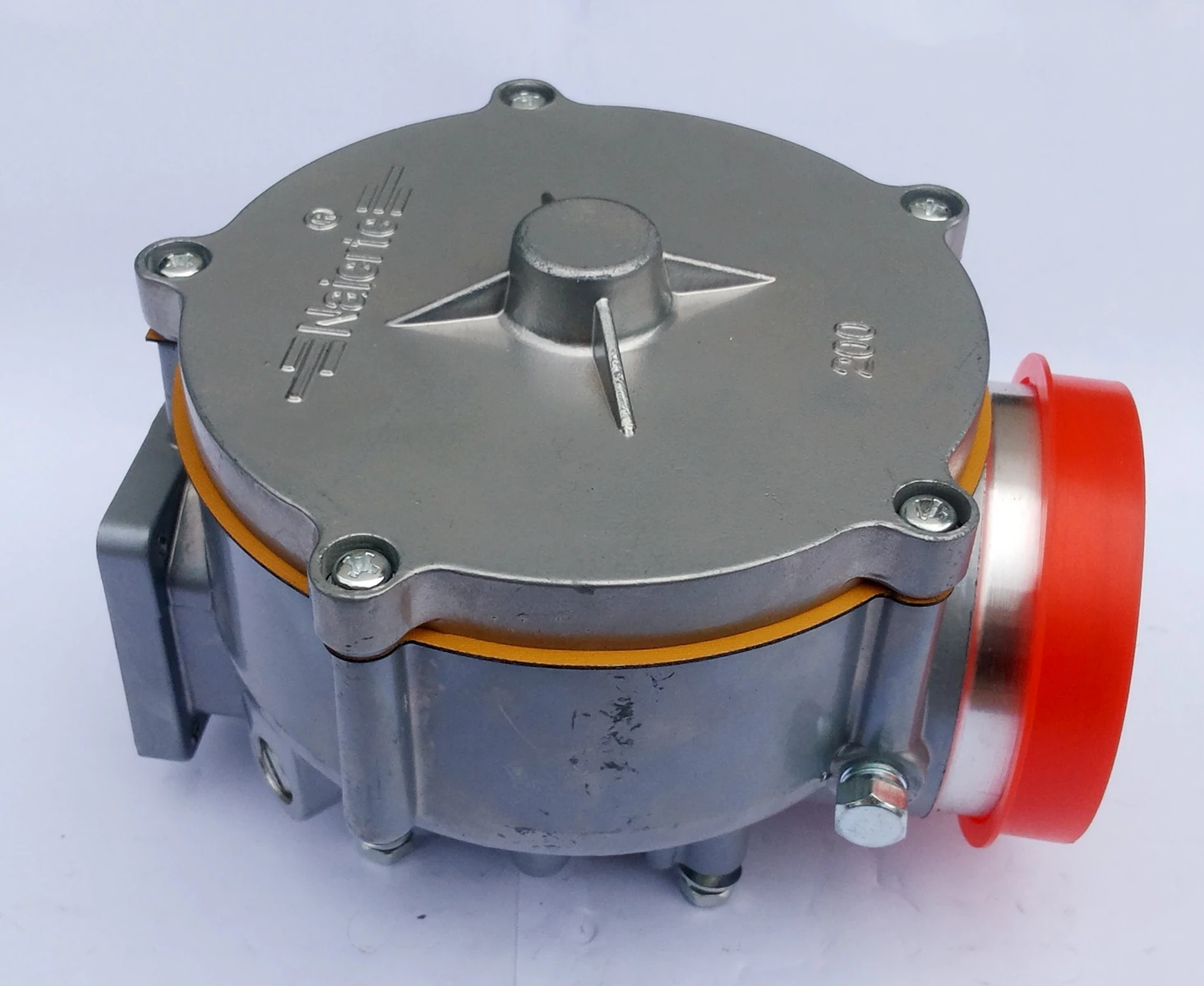

CNG conversion kits air-gas valve carburetor/mixer for truck engine

FOB Reference Price:Get Latest Price
US $120-265 / Set | 10 Set/Sets (Min. Order)
Supply Ability:
1000 Set/Sets per Week
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Fuel Injection PUmp
Size:
30*50*20cm
Car Make:
bus/truck
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
naierte
Model Number:
HHQ
Warranty:
1 Years
Fuel Type:
LPG Vapor or Natural Gas
Inlet Pressure:
-0.37 --100kPa
Operating Temperature Range:
-40F to +250F (-40C to +121C)
Mounting Position:
Vertical
Diaphragm Material:
Silicone
HP/kW Rating:
90 to 1500hp (67to 112Kw))
Packaging & Delivery
Packaging Details
10 pieces/carton(42cmx33cmx28cm,10.5kg/carton)
Delivery Time
Delivery time: in 15-20 days





             CNG conversion kits air-gas valve carburetor/mixer for truck engine



Product Description

1.According to the size of the engine power different , Providing  three different types of series mixer products to meet all kinds of  horsepower engine's need.

2.Below 100KW  the engine  intake of using  single lumen mixer(HHQ-200),100kw-200kw engine intake of using  double  cavity  mixer(HHQD-200),Above 200KW  the engine intake of using the three cavity mixer.

3. A idle screws had  setup on the proportion mixer ,through adjust the idle screws to control the Air air inflow,thus controling the Mixer concentration.


Detail of our product:

1.The mixer is a device to make the air and natrual gas according to a certain proportion mix  and form a combustible gas.

2.our company produce Single lumen mixer (HHQ-200) can be combine with low/high pressure reducer  to constitute premixer system.

3.The inlet pressure for natural gas is less than or equal to 0.35Mpa.

4.It can be used for trucks bused and cars of  CNG  engine and  LNG engine  which the horsepower  is 60kw-100KW.

5.This product  had achieved NEW PRACTICAL PATENT APPEARANCE.



The specifications of our product

Fuel TpyeCNG,LPG Vapor or Natural Gas
lnlet Pressure0.3-0.5kpa
Operating Temperature Range-40°F to +250°F(-40°C to+121°C)
Mounting  PositionVertical
Diaphragm MaterialSilicone
HP/KW Rating135-280hp(100--208kw)



 The advantage of our products :

1.Our product allows transportaion and industrial engines to operate to clean burning ,gaseous fuels such as Compressed Natrual Gas(CNG).



2.It could improve the fuel efficlency of the engine to obtain a more complete utilization of the power transmitting properties of the fuel.Additionally



3.Additionally,it is believed that emissions from an engine utilizing the device will pass pollution control specifications

4.All our mixers can reduce air flow by 20%.



 OUR Product installation diagram



 Factory photo



Certification                                   NEW PRACTICAL PATENT APPEARANCE





Product display
