Dual fuel NGV Japanese carburetor parts

FOB Reference Price:Get Latest Price
US $265-270 / Set | 10 Set/Sets (Min. Order)
Supply Ability:
1000 Set/Sets per Week
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Naierte
Warranty:
1 Years
Fuel Type:
CNG LPG Vapor or Natural Gas
Inlet Pressure:
0.3-0.5kPa
Market:
America, Africa, Europe, etc
Material:
Aluminium Alloy
Quality:
High-Quality
Certificate:
ECE-R110
Mounting position:
Vertical
Diaphragm material:
Silicone
Type:
Carburetor
Car Make:
car bus truck
Model Number:
HHQD-200
Packaging & Delivery
Packaging Details
standard caton
Delivery Time
7 days after receiving deposit or L/C



                  Dual fuel NGV Japanese carburetor parts



Product Description

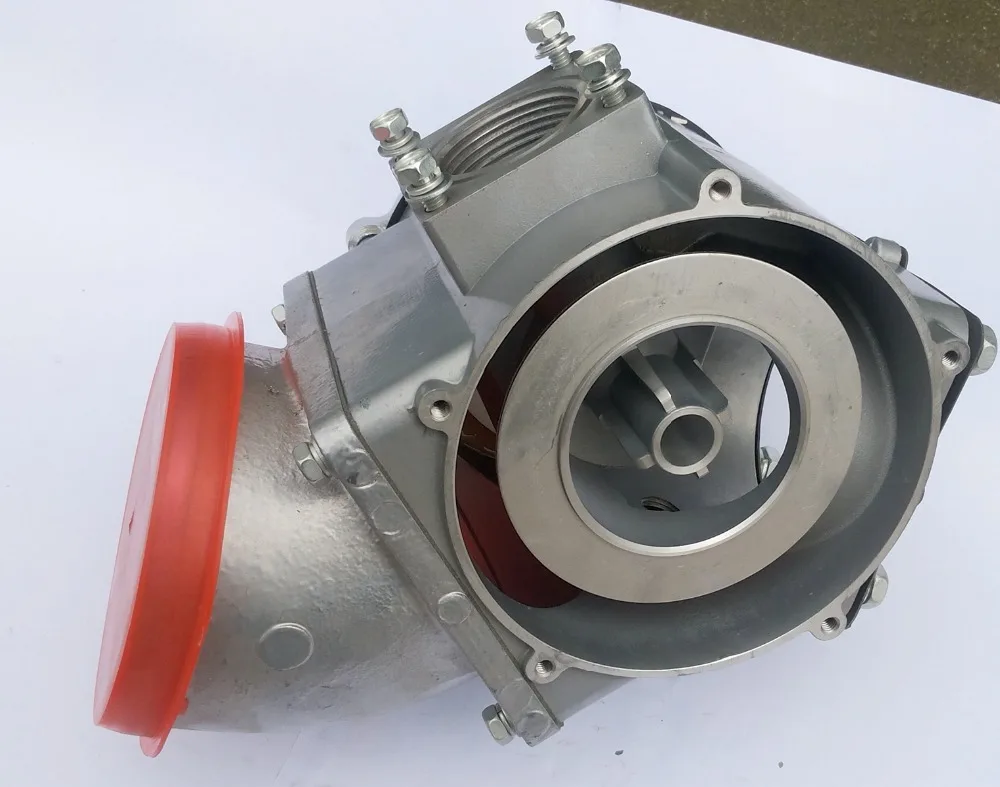

       The model HHQD-200 series is a double diaphragm air-valve carburetor /mixer .It offers a 90° air inlet to provide low overhead clearance, and is available with several air horn and throttle valve options.This unit is available for Lpg ,Cng ,Natural gas .The model HHQD-200 is also avaiable for feedback applications with the 'FB' designation.



        The HHQD-200 mixer provides a convenient 1/4" balance port at the air inlet ,however, it does not include air valve vacuum port .These prots can be added with modification to the main body or adapter casting if required.Additional low speed idle mixture control can be botained to lean air -fuel mixtures through the use of optional shims .All DG series mixers reduce air flow by 30%.



SPECIFICATIONS

Fuel Type.......................................CNG/LPG/Natural gas

Inlet Pressure..............................30psi(207kpa)--312 psi(21.5Bar)

Outlet Pressure............................2.7-9.0w.c(0.673-2.24 Kpa)

HP/KW..............................................200PH(150kw)--w/150psi (10.34 Bar) inlet

Operating Temperature Range..................- -40°F to +250°F (-40°C to +121°C)
Mounting position ..........................vertical

Diaphragm material.......................Silicone

HP/KW Rating....................................135--280hp (100--208 kw)



PRODUCT DISPLAY
